Made of die-cast aluminum in the standard version, as a single unit at IP55. Available upon request in the twocomponent version for self- braking motors at IP65 in enlarged size.
Upon request, also available in plastic for aggressive environments in the IP55 version, and in single-phase version with capacitor holder and control devices, such as switch.
Tab. 27
Standard |
Optional |
||||||||||||||||

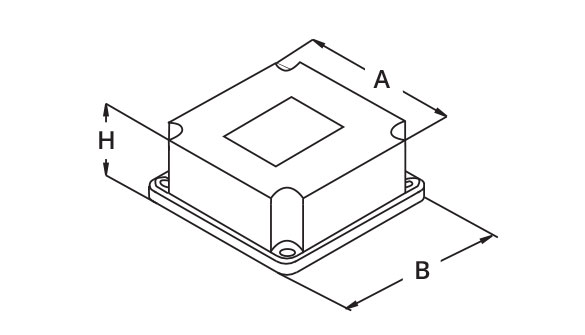

IP54 |

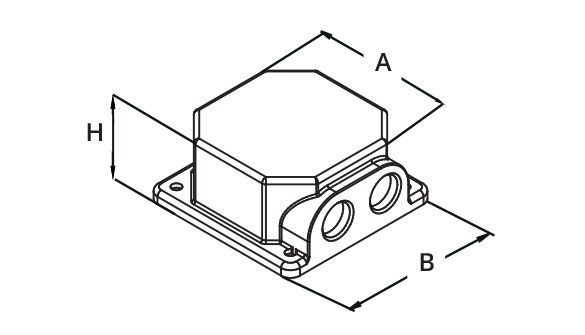

IP55 |
IP65 |

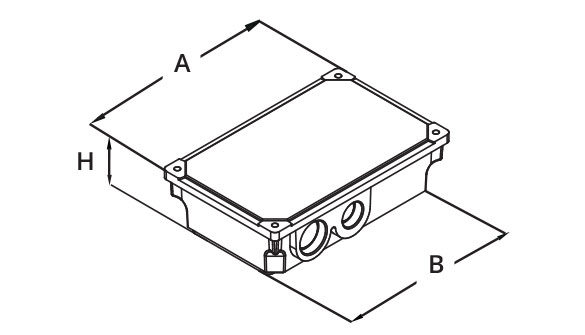

IP65 long |
||||||||||||||
Material ABS |
Material AI |
Material AI/ABS |
Material AI |
||||||||||||||
|
A |
|
B |
|
C |
|
D |
||||||||||
Size |
A |
B |
H |
|
Size |
A |
B |
H |
Size |
A |
B |
H |
|
Size |
A |
B |
H |
50 |
47 |
55 |
25 |
|
50 |
56 |
64 |
30 |
50 |
101 |
85 |
48 |
|
56÷71 |
138 |
84 |
40 |
56÷71 |
72 |
75 |
36 |
|
56÷71 |
66 |
75 |
34 |
56÷71 |
101 |
85 |
48 |
|
80÷112 |
154 |
99 |
47 |
80÷112 |
84 |
89 |
39 |
|
80÷112 |
78 |
92 |
39 |
80÷112 |
115 |
98 |
55 |
|
132 |
206 |
113 |
61 |
|
132 |
91 |
105 |
46 |
132 |
124 |
106 |
64 |
|
|
|||||||
|
|
160/180/200 |
185 |
161 |
84 |
|
|
||||||||||

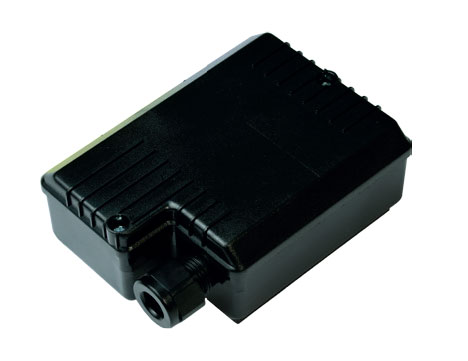

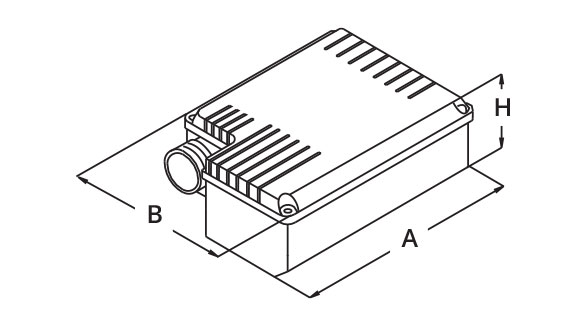

Capacitor holder |

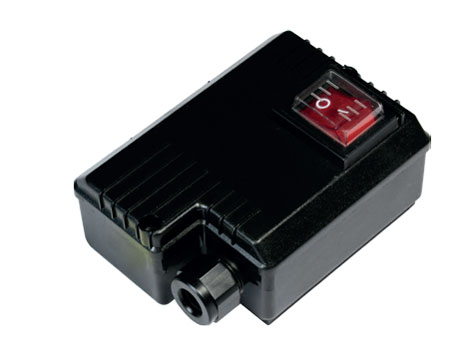

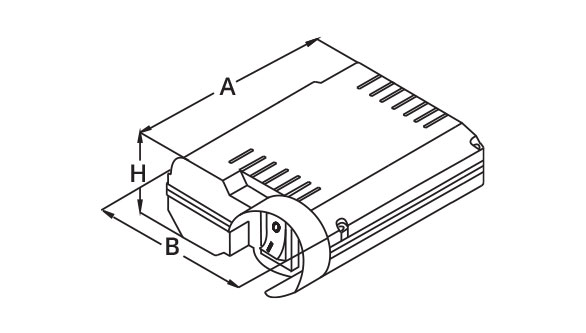

Single-phase equalizer switch |

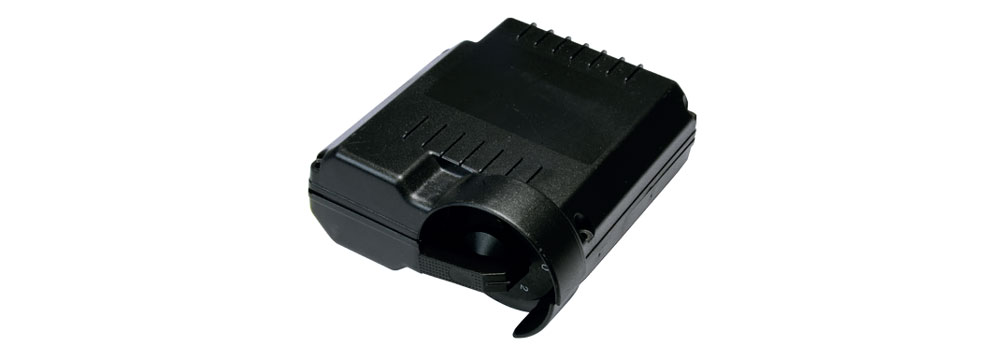

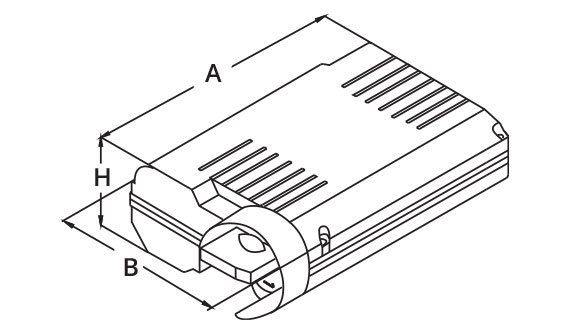

Semi-rotating switch |

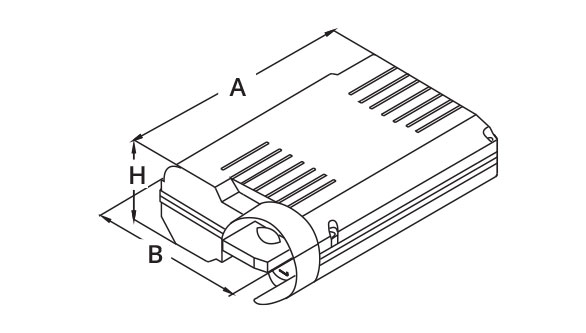

Semi-rotating Inverter |
||||||||||||||
Material ABS |
Material ABS |
Material ABS |
Material ABS |
||||||||||||||
|
E |
|
F |
|
G |
|
H |
||||||||||
Size |
A |
B |
H |
|
Size |
A |
B |
H |
Size |
A |
B |
H |
|
Size |
A |
B |
H |
56÷71 |
47 |
55 |
25 |
|
56÷71 |
56 |
64 |
30 |
56÷71 |
101 |
85 |
48 |
|
56÷71 |
138 |
84 |
40 |
80÷112 |
72 |
75 |
36 |
|
80÷112 |
66 |
75 |
34 |
80÷112 |
101 |
85 |
48 |
|
80÷112 |
154 |
99 |
47 |

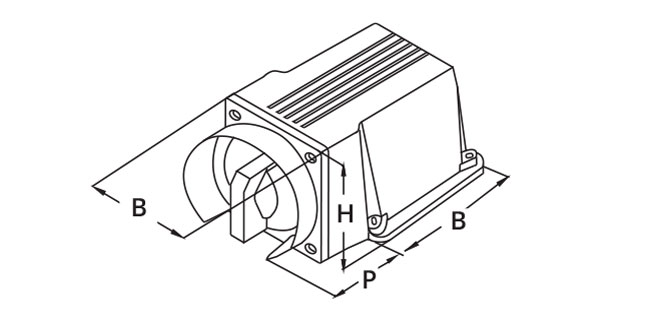

Switch holder |

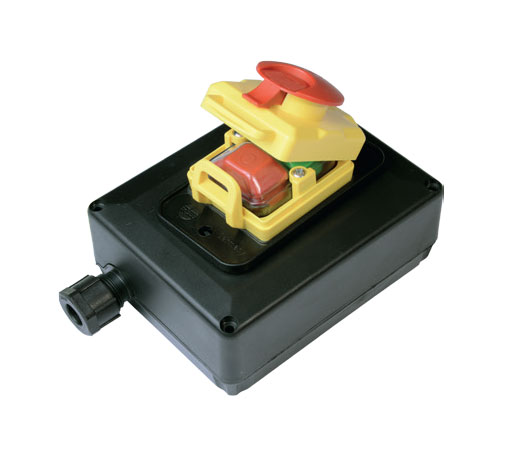

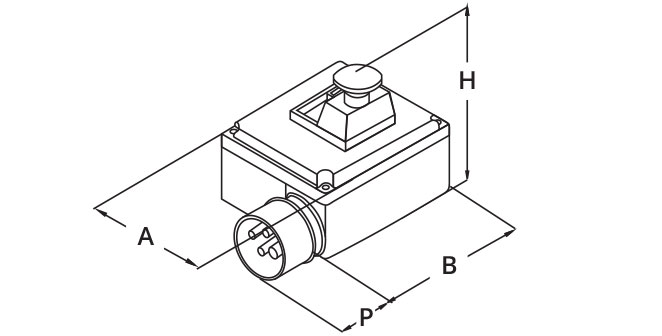

ON/OFF sticky switch |
ON/OFF sticky switch with cut-out |
|||||||||||
Material ABS |
Material ABS |
Material ABS |
|||||||||||
|
I |
|
L |
|
M |
||||||||
Size |
A |
B |
H |
P |
Size |
A |
B |
H |
Size |
A |
B |
H |
P |
80÷112 |
74 |
90 |
83 |
33 |
63÷100 |
105 |
133 |
127 |
63÷112 |
115 |
139 |
148 |
65 |

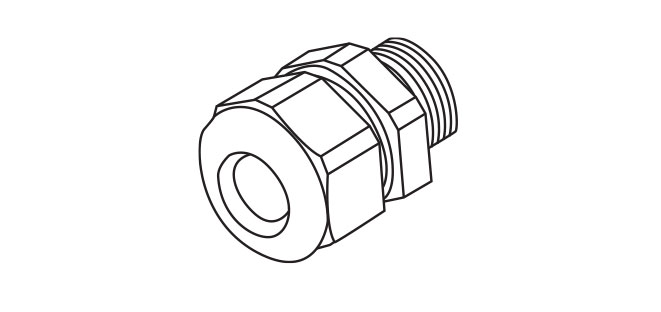

Cable press |
|||
Material ABS |
|||
Upon request STD metric thread |
N |
||
Size |
|
||
50 |
PG9 |
M16 |
|
56÷71 |
PG11 |
M16 |
|
80÷112 |
PG16 |
M20 |
|
132÷160 |
PG21 |
M25 |
IP55 |
132/160 |
M32 |
IP65 |
Overall dimensions from the center of the motor shaft to the motor terminal box
Tab. 28
Description |
Motor terminal box
|
SD / Size 63 - 132 |
||||||||
63 |
71 |
80 |
90S |
90L |
100 |
112 |
132S |
132M |
||
Brakemotor with AC Brake |
IP55 |
100 |
109 |
120 |
128 |
128 |
140 |
149 |
177 |
177 |
Brakemotor with AC Brake - Separate Brake Supply |
IP65 |
110 |
117 |
137 |
147 |
147 |
155 |
168 |
188 |
188 |
Brakemotor with DC Brake |
IP65 |
112 |
119 |
139 |
148 |
148 |
157 |
170 |
190 |
190 |
Brakemotor with DC Brake - Separate Brake Supply |
IP65 |
112 |
119 |
139 |
148 |
148 |
157 |
170 |
190 |
190 |
Double Speed Brakemotor always |
IP65 |
110 |
117 |
137 |
147 |
147 |
155 |
168 |
188 |
188 |
SD / Size 160 - 200 |
||||||||||
160S |
160M |
180 |
200 |
|||||||
Always |
IP65 |
246 |
246 |
260 |
260 |
Full size see table.27
